[Open_electroporator] A Sharpie drawn printed circuit board coming together
John Griessen
john at industromatic.com
Sat Jun 18 06:26:17 UTC 2016

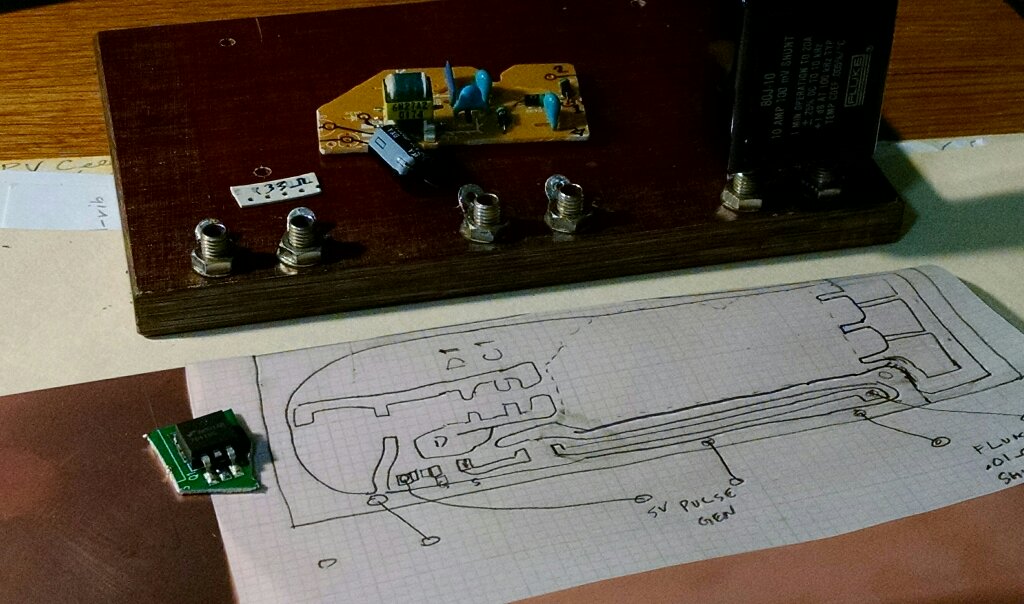

Under the rag paper I've drawn some with sharpie marker to resist etching acid,
and this will be a board to solder on around 10 in the AM. The etched board
will get parts, wires to the junk board section, then test. Maybe we'll send this to
one of you after adding a micro. Maybe we'll wait til it's more polished -- naaaahhh....
We need to know will it zap a real broth of bugs? then go all out with detailed design...
John
-- JG's phone
-------------- next part --------------
A non-text attachment was scrubbed...
Name: Image-1920544084.jpg
Type: image/jpeg
Size: 126028 bytes
Desc: not available
URL: <http://cibolo.us/pipermail/open_electroporator/attachments/20160618/4e6f9d1e/attachment.jpg>
